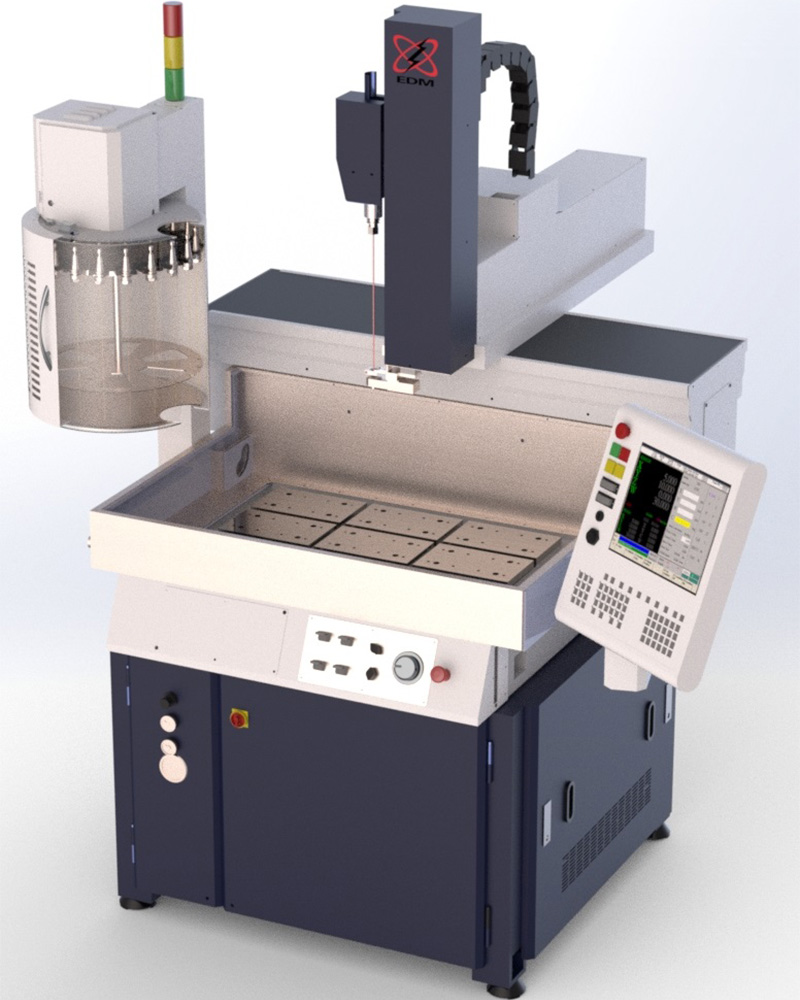

Machine Demonstration:
The EDM Milling feature allows the machine to EDM the required geometry from the imported NC file. The NC file is the cutter path created by a CAD CAM system. The function to EDM mill is controlled by a special G-Code which moves the X, Y, and W Axes simultaneously based on the coordinates from the NC file.
This EDM Drill also features a programmable water level. The water level is programmed to move with the part so that the machine head is not submerged.
6 Coordinate Systems
Allows up to 6 jobs to be run consecutively in a single set up
3 Step Control of EDM Parameters
Program up to three EDM parameter settings per hole to improve hole quality on difficult entrance and exits
Automatic Electrode Changer
Allows for a large volume of unattended operation
Automatic Electrode Stabilizer
Moves automatically to provide extra support for long electrodes
1000 RPM Programmable Spindle
Rotation speed is adjustable and will reduce cycle time for some applications
Windows Based
With conversational G and M Code programming
Multi-Tasking Abilities
Create and edit one program while the machine is running another
Ethernet Connectivity and USB Support
For programming and transferring of data
Automatic Depth Control
Generate blind holes reliably without operator intervention
Linear Glass Scales with 1 Micron Resolution
Provides true, closed loop, position feedback for precise part positioning accuracy
Auxiliary I/O
Ability to interface with ancillary devices such as rotary tables, indexers, and work piece handling systems
Integrated Rotary and Tilt/Rotary Tables (Optional)
Programmable tilt and rotary systems for complex parts requiring multi axis positioning
Break Through Detection (Optional)
Ensures a complete hole or helps to eliminate back wall strikes
Optical Inspection System (Optional)
High resolution video camera can measure hole size, verify position, and locate datum points for part programs
EDM Power Booster (Optional)
Increases the maximum average current which will reduce the cycle time when using larger diameter electrodes
Programmable High Pressure Flush (Optional)
The pressure setting for the high pressure flush through the electrode is programmed with a G-code in the part program.
| TRAVEL | |
| X Axis | 19.6″ (500 mm) |
| Y Axis | 15.7″ (400 mm) |
| W Axis | 13.5″ (345 mm) |
| Z Axis | 15.7″ (400 mm) 23.6″ (600 mm)•• |
| Open Height | |
| Minimum | 0.5″ (15mm) |
| Maximum | 14.1″ (360mm) |
| Open Height to TILT ROTARY TABLE *** | |
| Minimum | – |
| Maximum | – |
| WORK TABLE | |
| Width x Depth | 31.4″ x 19.6″ (800 x 500 mm) |
| WORK TANK | |
| Width x Depth x Height | 43.8″ x 27.3″ x 5.9″ (1,115 x 695 x 150 mm) |
| WEIGHT CAPACITY | |
| On Work Table | 1,750 lb. (795 kg.) |
| On Tilt Rotary | – |
| GENERATOR | |
| Maximum Average Current | 30A, 60A** |
| On and Off Time | 1 to 99 μs |
| Capacitors | 0 to 1.81 μF |
| AUTOMATIC ELECTRODE AND GUIDE CHANGER | |
| AEC Positions | 20, 30**, 60** |
| AGC Positions | 12**, 30** |
| FLOOR SPACE AND WEIGHT | |
| Width x Depth x Height | 101″ x 71″ x 92″ (257 cm x 180 cm x 235 cm) |
| Machine Tool Weight | 3,630 lb. (1,650 kg.) |
| ENVIRONMENTAL | |
| Room Temperature | 68 to 77°F (20 to 25°C) |
| Relative Humidity | 40%to 55% |
| UTILITIES | |
| Electrical | 220VAC ±10%, 3 PHASE, 60 Hz, 3.5 KVA |
| Air | 90 PSI@ 1 CFM (6 BAR@ 1.7 CMH) |
* Open Height is measured from tip of a standard guide.
** Optional.
Illustrations and specifications herein are not binding in detail. Belmont Equipment & Technologies reserves the right to modify and make improvements to these specifications without notice
| TRAVEL | |
| X Axis | 19.6″ (500 mm) |
| Y Axis | 15.7″ (400 mm) |
| W Axis | 19.6″ (500 mm) |
| Z Axis | 15.7″ (400 mm) 23.6″ (600 mm)•• |
| Open Height | |
| Minimum | 6.3″ (160 mm) |
| Maximum | 26.0″ (660 mm) |
| Open Height to TILT ROTARY TABLE *** | |
| Minimum | – |
| Maximum | – |
| WORK TABLE | |
| Width x Depth | 31.4″ x 19.6″ (800 x 500 mm) |
| WORK TANK | |
| Width x Depth x Height | 43.8″ x 27.3″ x 5.9″ (1,115 x 695 x 150 mm) |
| WEIGHT CAPACITY | |
| On Work Table | 1,750 lb. (795 kg.) |
| On Tilt Rotary | – |
| GENERATOR | |
| Maximum Average Current | 30A, 60A** |
| On and Off Time | 1 to 99 μs |
| Capacitors | 0 to 1.81 μF |
| AUTOMATIC ELECTRODE AND GUIDE CHANGER | |
| AEC Positions | 20, 30**, 60** |
| AGC Positions | 12**, 30** |
| FLOOR SPACE AND WEIGHT | |
| Width x Depth x Height | 101″ x 71″ x 104″ (257 cm x 180 cm x 264 cm) |
| Machine Tool Weight | 4,520 lb. (2,050 kg.) |
| ENVIRONMENTAL | |
| Room Temperature | 68 to 77°F (20 to 25°C) |
| Relative Humidity | 40%to 55% |
| UTILITIES | |
| Electrical | 220VAC ±10%, 3 PHASE, 60 Hz, 3.5 KVA |
| Air | 90 PSI@ 1 CFM (6 BAR@ 1.7 CMH) |
* Open Height is measured from tip of a standard guide.
** Optional.
Illustrations and specifications herein are not binding in detail. Belmont Equipment & Technologies reserves the right to modify and make improvements to these specifications without notice
| TRAVEL | |
| X Axis | 19.6″ (500 mm) |
| Y Axis | 15.7″ (400 mm) |
| W Axis | 19.6″ (500 mm) |
| Z Axis | 15.7″ (400 mm) 23.6″ (600 mm)•• |
| Open Height | |
| Minimum | 6.3″ (160 mm) |
| Maximum | 26.0″ (660 mm) |
| Open Height to TILT ROTARY TABLE *** | |
| Minimum | 0.0″ (0mm) |
| Maximum | 18.7″ (475 mm) |
| WORK TABLE | |
| Width x Depth | 31.4″ x 19.6″ (800 x 500 mm) |
| WORK TANK | |
| Width x Depth x Height | 43.8″ x 27.3″ x 5.9″ (1,115 x 695 x 150 mm) |
| WEIGHT CAPACITY | |
| On Work Table | 1,750 lb. (795 kg.) |
| On Tilt Rotary | 60 lb. (27 kg.) |
| GENERATOR | |
| Maximum Average Current | 30A, 60A** |
| On and Off Time | 1 to 99 μs |
| Capacitors | 0 to 1.81 μF |
| AUTOMATIC ELECTRODE AND GUIDE CHANGER | |
| AEC Positions | 20, 30**, 60** |
| AGC Positions | 12**, 30** |
| FLOOR SPACE AND WEIGHT | |
| Width x Depth x Height | 101″ x 71″ x 104″ (257 cm x 180 cm x 264 cm) |
| Machine Tool Weight | 4,920 lb. (2,230 kg.) |
| ENVIRONMENTAL | |
| Room Temperature | 68 to 77°F (20 to 25°C) |
| Relative Humidity | 40%to 55% |
| UTILITIES | |
| Electrical | 220VAC ±10%, 3 PHASE, 60 Hz, 3.5 KVA |
| Air | 90 PSI@ 1 CFM (6 BAR@ 1.7 CMH) |
* Open Height is measured from tip of a standard guide.
** Optional.
Illustrations and specifications herein are not binding in detail. Belmont Equipment & Technologies reserves the right to modify and make improvements to these specifications without notice
