Machine Demonstration:
Simulated production application with unattended operation. Three different parts are randomly loaded in the pickup tray. The robot will pick a part, a high speed digital camera will measure the part, and the EDM Drill will select the correct part program based on the part size. The Fanuc robot is equipped with a dual gripper to reduce the amount of time when exchanging completed and new parts.

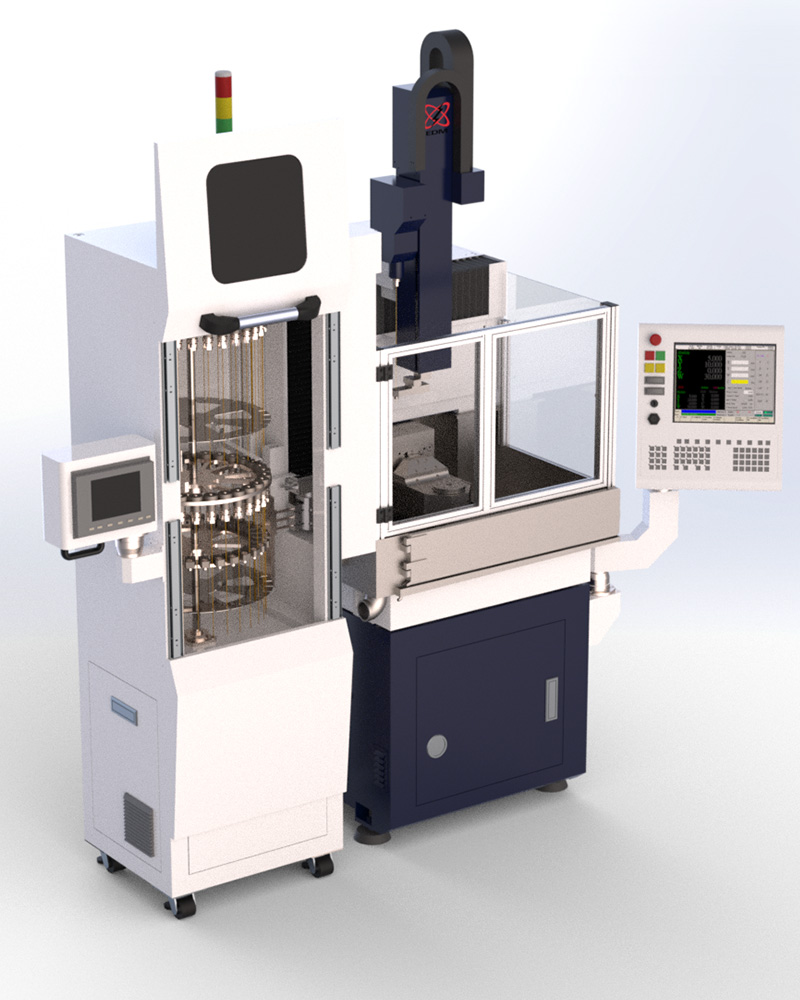

An optional 60 electrodes and 30 guide positions Tool Bank was added to maximize unattended operation. The SY Drill keeps track of each electrode, when an electrode is used the machine automatically loads the next one and continues the programmed operation. The LCD display attached to the AEC will show the status of each electrode holder. Electrode diameters from 0.3 mm to 6.0 mm can be utilized in the AEC. The maximum electrode length is 400 mm
6 Coordinate Systems
Allows up to 6 jobs to be run consecutively in a single set up
3 Step Control of EDM Parameters
Program up to three EDM parameter settings per hole to improve hole quality on difficult entrance and exits
Automatic Electrode Changer
Allows for a large volume of unattended operation
Automatic Electrode Stabilizer
Moves automatically to provide extra support for long electrodes
1000 RPM Programmable Spindle
Rotation speed is adjustable and will reduce cycle time for some applications
Windows Based
With conversational G and M Code programming
Multi-Tasking Abilities
Create and edit one program while the machine is running another
Ethernet Connectivity and use Support
For programming and transferring of data
Automatic Depth Control
Generate blind holes reliably without operator intervention
Linear Glass Scales with 1 Micron Resolution
Provides true, closed loop, position feedback for precise part
positioning accuracy
Auxiliary I/O
Ability to interface with ancillary devices such as rotary tables, indexers, and work piece handling systems
Integrated Rotary and Tilt/Rotary Tables (Optional)
Programmable tilt and rotary systems for complex parts requiring
multi axis positioning
Break Through Detection (Optional):
Ensures a complete hole or helps to eliminate back wall strikes
Optical Inspection System (Optional)
High resolution video camera can measure hole size, verify position,
and locate datum points for part programs
EDM Power Booster (Optional)
Increases the maximum average current which will reduce the cycle time when using larger diameter electrodes
Programmable High Pressure Flush (Optional)
The pressure setting for the high pressure flush through the electrode is programmed with a G-code in the part program.
| TRAVEL | |
| X Axis | 23.6″ (600 mm) |
| Y Axis | 15.7″ (400 mm) |
| W Axis | 13.5″ (345 mm) |
| Z Axis | 15.7″ (400 mm) 23.6″ (600 mm)•• |
| Open Height | |
| Minimum | 0.5″ (15mm) |
| Maximum | 14.1″ (360mm) |
| Open Height to TILT ROTARY TABLE *** | |
| Minimum | – |
| Maximum | – |
| WORK TABLE | |
| Width x Depth | 31.4″ x 19.6″ (800 x 500 mm) |
| WORK TANK | |
| Width x Depth x Height | 43.8″ x 27.3″ x 5.9″ (1,115 x 695 x 150 mm) |
| WEIGHT CAPACITY | |
| On Work Table | 1,750 lb. (795 kg.) |
| On Tilt Rotary | – |
| GENERATOR | |
| Maximum Average Current | 30A, 60A** |
| On and Off Time | 1 to 99 μs |
| Capacitors | 0 to 1.81 μF |
| AUTOMATIC ELECTRODE AND GUIDE CHANGER | |
| AEC Positions | 20**, 30**, 60** |
| AGC Positions | 12**, 30** |
| FLOOR SPACE AND WEIGHT | |
| Width x Depth x Height | 93″ x 71″ x 92″ (236 cm x 180 cm x 235 cm) |
| Machine Tool Weight | 3,190 lb. (1,450 kg.) |
| ENVIRONMENTAL | |
| Room Temperature | 68 to 77°F (20 to 25°C) |
| Relative Humidity | 40%to 55% |
| UTILITIES | |
| Electrical | 220VAC ±10%, 3 PHASE, 60 Hz, 3.5 KVA |
| Air | 90 PSI@ 1 CFM (6 BAR@ 1.7 CMH) |
* Open Height is measured from tip of a standard guide.
** Optional.
*** See model SY-4060R-5X
Illustrations and specifications herein are not binding in detail. Belmont Equipment & Technologies reserves the right to modify and make improvements to these specifications without notice
| TRAVEL | |
| X Axis | 23.6″ (600 mm) |
| Y Axis | 15.7″ (400 mm) |
| W Axis | 19.6″ (500 mm) |
| Z Axis | 15.7″ (400 mm) 23.6″ (600 mm)•• |
| Open Height | |
| Minimum | 6.3″ (160mm) |
| Maximum | 26.0″ (660mm) |
| Open Height to TILT ROTARY TABLE *** | |
| Minimum | – |
| Maximum | – |
| WORK TABLE | |
| Width x Depth | 31.4″ x 19.6″ (800 x 500 mm) |
| WORK TANK | |
| Width x Depth x Height | 43.8″ x 27.3″ x 5.9″ (1,115 x 695 x 150 mm) |
| WEIGHT CAPACITY | |
| On Work Table | 1,750 lb. (795 kg.) |
| On Tilt Rotary | – |
| GENERATOR | |
| Maximum Average Current | 30A, 60A** |
| On and Off Time | 1 to 99 μs |
| Capacitors | 0 to 1.81 μF |
| AUTOMATIC ELECTRODE AND GUIDE CHANGER | |
| AEC Positions | 20**, 30**, 60** |
| AGC Positions | 12**, 30** |
| FLOOR SPACE AND WEIGHT | |
| Width x Depth x Height | 93″ x 71″ x 104″ (236 cm x 180 cm x 264 cm) |
| Machine Tool Weight | 4,035 lb. (1,830 kg.) |
| ENVIRONMENTAL | |
| Room Temperature | 68 to 77°F (20 to 25°C) |
| Relative Humidity | 40%to 55% |
| UTILITIES | |
| Electrical | 220VAC ±10%, 3 PHASE, 60 Hz, 3.5 KVA |
| Air | 90 PSI@ 1 CFM (6 BAR@ 1.7 CMH) |
* Open Height is measured from tip of a standard guide.
** Optional.
Illustrations and specifications herein are not binding in detail. Belmont Equipment & Technologies reserves the right to modify and make improvements to these specifications without notice
| TRAVEL | |
| X Axis | 23.6″ (600 mm) |
| Y Axis | 15.7″ (400 mm) |
| W Axis | 19.6″ (500 mm) |
| Z Axis | 15.7″ (400 mm) 23.6″ (600 mm)•• |
| Open Height | |
| Minimum | 6.3″ (160mm) |
| Maximum | 26.0″ (660mm) |
| Open Height to TILT ROTARY TABLE *** | |
| Minimum | 0.0″ {0mm) |
| Maximum | 18.7″ (475 mm) |
| WORK TABLE | |
| Width x Depth | 31.4″ x 19.6″ (800 x 500 mm) |
| WORK TANK | |
| Width x Depth x Height | 43.8″ x 27.3″ x 5.9″ (1,115 x 695 x 150 mm) |
| WEIGHT CAPACITY | |
| On Work Table | 1,750 lb. (795 kg.) |
| On Tilt Rotary | 60 lb. (27 kg.) |
| GENERATOR | |
| Maximum Average Current | 30A, 60A** |
| On and Off Time | 1 to 99 μs |
| Capacitors | 0 to 1.81 μF |
| AUTOMATIC ELECTRODE AND GUIDE CHANGER | |
| AEC Positions | 20**, 30**, 60** |
| AGC Positions | 12**, 30** |
| FLOOR SPACE AND WEIGHT | |
| Width x Depth x Height | 93″ x 71″ x 104″ (236 cm x 180 cm x 264 cm) |
| Machine Tool Weight | 4,435 lb. (2,010 kg.) |
| ENVIRONMENTAL | |
| Room Temperature | 68 to 77°F (20 to 25°C) |
| Relative Humidity | 40%to 55% |
| UTILITIES | |
| Electrical | 220VAC ±10%, 3 PHASE, 60 Hz, 3.5 KVA |
| Air | 90 PSI@ 1 CFM (6 BAR@ 1.7 CMH) |
* Open Height is measured from tip of a standard guide.
** Optional.
Illustrations and specifications herein are not binding in detail. Belmont Equipment & Technologies reserves the right to modify and make improvements to these specifications without notice
SY-4060R Small Hole EDM Drill with Fanuc LRMate Robot and Fanuc Vision with Tool Bank
Programmable flush pressure
