Machine Demonstration:

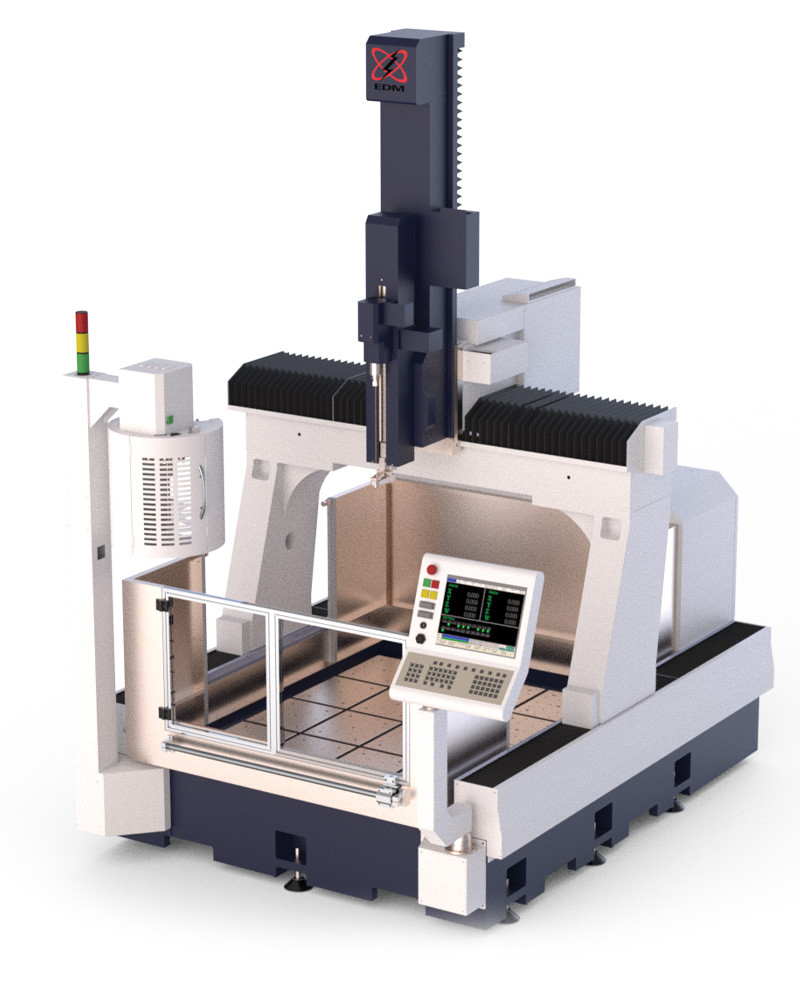

The SY-1210TGUR features an integrated tilting drill head with +/-100 degrees of rotation. Also, a 1,000 RPM programmable spindle, 30 position electrode changer, and 12 position guide changer. The machine will be simulating EDM drilling on a 36” diameter aerospace ring using 600mm electrodes. The drill has six-coordinate systems that allow up to six individual jobs to be programmed and run consecutively in a single setup. It also has multi-tasking abilities that allow you to edit one program while the machine is running another. A maximum work piece weight of 5,500 lbs. along with our multiple electrode and guide changer options makes this drill perfect for large tools, aerospace, power generation, and production applications.
6 Coordinate Systems
Allows up to 6 jobs to be run consecutively in a single set up
3 Step Control of EDM Parameters
Program up to three EDM parameter settings per hole to improve hole quality on difficult entrance and exits
Automatic Electrode Changer (Optional)
Allows for a large volume of unattended operation
Automatic Electrode Stabilizer
Moves automatically to provide extra support for long electrodes
1000 RPM Programmable Spindle
Rotation speed is adjustable and will reduce cycle time for some applications
Windows Based
With conversational G and M Code programming
Multi-Tasking Abilities
Create and edit one program while the machine is running another
Ethernet Connectivity and use Support
For programming and transferring of data
Automatic Depth Control
Generate blind holes reliably without operator intervention
Linear Glass Scales with 1 Micron Resolution
Provides true, closed loop, position feedback for precise part positioning accuracy
Auxiliary I/O
Ability to interface with ancillary devices such as rotary tables, indexers, and work piece handling systems
Integrated Rotary and Tilt/Rotary Tables (Optional)
Programmable tilt and rotary systems for complex parts requiring multi axis positioning
Break Through Detection (Optional):
Ensures a complete hole or helps to eliminate back wall strikes
Optical Inspection System (Optional)
High resolution video camera can measure hole size, verify position, and locate datum points for part programs
EDM Power Booster (Optional)
Increases the maximum average current which will reduce the cycle time when using larger diameter electrodes
Programmable High Pressure Flush (Optional)
The pressure setting for the high pressure flush through the electrode is programmed with a G-code in the part program.
TRAVEL | |
X Axis | 39.3″ (1,000 mm) |
Y Axis | 47.2″ (1,200 mm) |
W Axis | 39.3″ (1,000 mm) |
U Axis (Tilt Head) | ±100° from vertical |
Z Axis | lS.7″ (400 mm) 23.6″ (600 mm)** |
Open Height | |
Minimum | 3.1″ (80mm) |
Maximum | 39.3″ (1,000 mm) |
WORK TABLE | |
Width x Depth | 43.3″ x 51.1″ (1,100 x 1,300 mm) |
WORK PAN | |
Width x Depth | 59.0″ x 70.8″ (1,500 x 1,800 mm) |
WEIGHT CAPACITY | |
On Work Table | 5,500 lb. (2,500 kg.) |
GENERATOR | |
Maximum Average Current | 30A, 60A** |
On and Off Time | 1 to 99 μs |
Capacitors | 0 to 1.81 μF |
AUTOMATIC ELECTRODE AND GUIDE CHANGER | |
AEC Positions | – |
AGC Positions | – |
FLOOR SPACE AND WEIGHT | |
Width x Depth x Height | 104″ x 134″ x 142″ (265 cm x 341 cm x 361 cm) |
Machine Tool Weight | 12,540 lb. (5,700 kg.) |
ENVIRONMENTAL | |
Room Temperature | 68 to 77°F (20 to 25°C) |
Relative Humidity | 40%to 55% |
UTILITIES | |
Electrical | 220VAC ±10%, 3 PHASE, 60 Hz, 3.5 KVA |
Air | 90 PSI@ 1 CFM (6 BAR@ 1.7 CMH) |
* Maximum Open Height is measured from the work table to the X Axis bridge.
Illustrations and specifications herein are not binding in detail. Belmont Equipment & Technologies reserves the right to modify and make improvements to these specifications without notice
TRAVEL | |
X Axis | 39.3″ (1,000 mm) |
Y Axis | 47.2″ (1,200 mm) |
W Axis | 39.3″ (1,000 mm) |
U Axis (Tilt Head) | ±100° from vertical |
Z Axis | lS.7″ (400 mm) 23.6″ (600 mm)** |
Open Height | |
Minimum | 3.1″ (80mm) |
Maximum | 39.3″ (1,000 mm) |
WORK TABLE | |
Width x Depth | 43.3″ x 51.1″ (1,100 x 1,300 mm) |
WORK PAN | |
Width x Depth | 59.0″ x 70.8″ (1,500 x 1,800 mm) |
WEIGHT CAPACITY | |
On Work Table | 5,500 lb. (2,500 kg.) |
GENERATOR | |
Maximum Average Current | 30A, 60A** |
On and Off Time | 1 to 99 μs |
Capacitors | 0 to 1.81 μF |
AUTOMATIC ELECTRODE AND GUIDE CHANGER | |
AEC Positions | 20, 30** |
AGC Positions | 12** |
FLOOR SPACE AND WEIGHT | |
Width x Depth x Height | 104″ x 134″ x 142″ (265 cm x 341 cm x 361 cm) |
Machine Tool Weight | 12,980 lb. (5,900 kg.) |
ENVIRONMENTAL | |
Room Temperature | 68 to 77°F (20 to 25°C) |
Relative Humidity | 40%to 55% |
UTILITIES | |
Electrical | 220VAC ±10%, 3 PHASE, 60 Hz, 3.5 KVA |
Air | 90 PSI@ 1 CFM (6 BAR@ 1.7 CMH) |
* Maximum Open Height is measured from the work table to the X Axis bridge.
Illustrations and specifications herein are not binding in detail. Belmont Equipment & Technologies reserves the right to modify and make improvements to these specifications without notice
