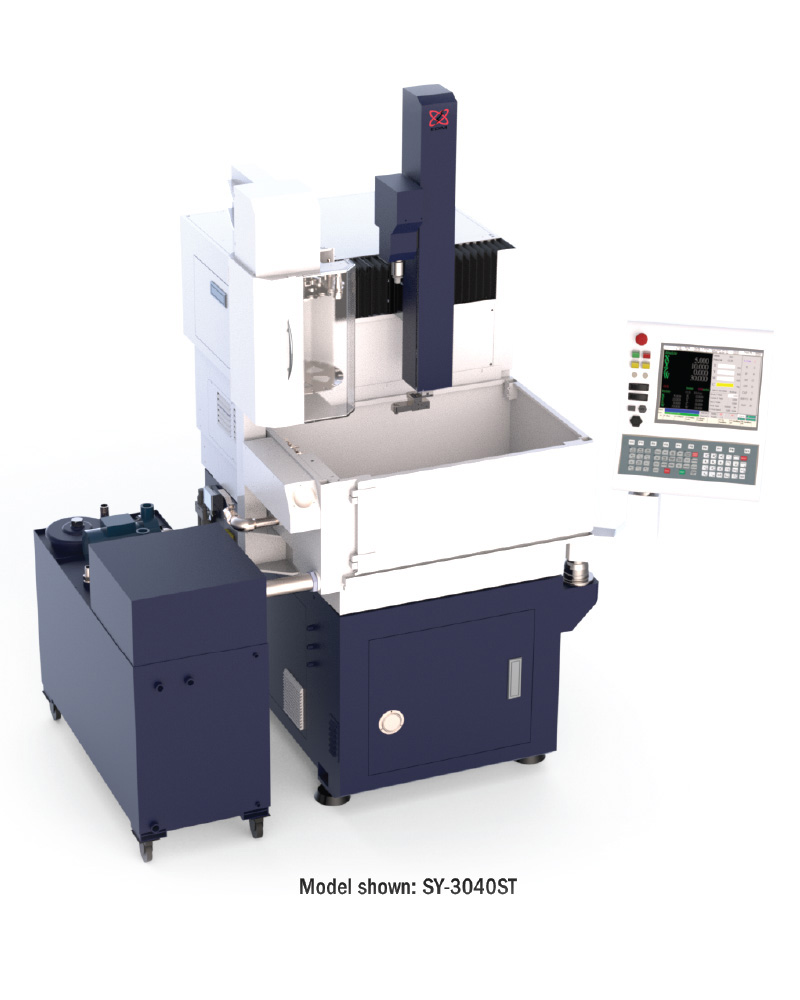

Belmont SY-3040ST CNC High Speed EDM Drill

Oil Dielectric for Carbide Applications
Application specific feature will reduce cycle time by using oil as the dielectric

6 Coordinate Systems
Allows up to 6 jobs to be run consecutively in a single set up

3 Step Control of EDM Parameters
Program up to three EDM parameter settings per hole to improve hole quality on difficult entrance and exits

Automatic Electrode Changer
Allows for a large volume of unattended operation

Automatic Electrode Stabilizer
Moves automatically to provide extra support for long electrodes

1000 RPM Programmable Spindle
Rotation speed is adjustable and will reduce cycle time for some applications

Windows Based
With conversational G and M Code programming

Multi-Tasking Abilities
Create and edit one program while the machine is running another

Ethernet Connectivity and USB Support
For programming and transferring of data

Automatic Depth Control
Generate blind holes reliably without operator intervention

Linear Glass Scales with 1 Micron Resolution
Provides true, closed loop, position feedback for precise part positioning accuracy

Auxiliary 1/0
Ability to interface with ancillary devices such as rotary tables, indexers, and work piece handling systems

Integrated Rotary and Tilt/Rotary Tables (optional)
Programmable tilt and rotary systems for complex parts requiring multi axis positioning

Break Through Detection (optional)
Ensures a complete hole or helps to eliminate back wall strikes

Optical Inspection System (optional)
High resolution video camera can measure hole size, verify position, and locate datum points for part programs

EDM Power Booster (optional)
Increases the maximum average current which will reduce the cycle time when using larger diameter electrodes

* Open Height is measured from tip of a standard guide.

**Optional.

*** Work tank height and maximum oil level is measured from the top of the work table.

Illustrations and specifications here in are not binding in detail. Belmont Equipment & Technologies reserves the right to modify and make improvements to these specifications without notice.
