Programmable Z Axis
Automatically control depth and generator settings from roughing to finishing cycles
Conversational G and M Code Programming
Simplifies programming and makes functions easier to learn
Password Protected Settings
The program can be password protected to prevent unauthorized changes
Auxiliary I/0
Ability to integrate ancillary devices such as rotary tables, indexers, and work piece handling systems
Linear Glass Scales with 1 Micron Resolution
Provides true, closed loop, position feedback for precise part positioning accuracy

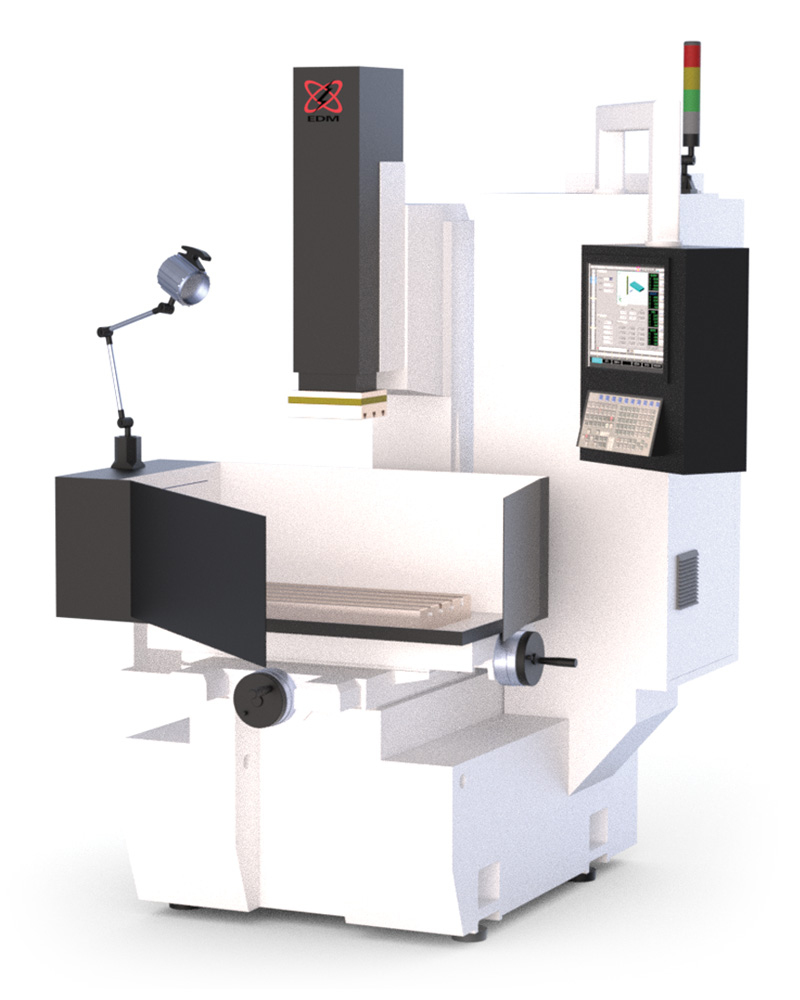

Compact Machine Design
EDM generator is attached to the machine body and oil reservoir is in the base of the machine to reduce floor space and eliminate cables on the floor
FC-35 Grade Casting
High quality cast iron for increased rigidity and work piece capacity
External Data Transfer
Transfer programs with a USB memory stick or across a network using Ethernet
Adaptive Logic (Optional)
Difficult applications can be completed with no flushing without the risk of arcing
| TRAVEL | |
| X Axis | 15.7″ (400 mm) |
| Y Axis | 11.8″ (300 mm) |
| Back Slide | 9.0″ (230 mm) |
| Z Axis | 7.2″ (185 mm) |
| Open Height | |
| Minimum | 3.3″ (85 mm) |
| Maximum | 19.6″ (500 mm) |
| WORK TABLE | |
| Width x Depth | 25.5″ x 13.7″ (650 x 350 mm) |
| WORK TANK | |
| Width x Depth x Height | 39.3″ x 23.6″ x 12.9″ (1,000 x 600 x 330 mm) |
| Maximum Oil Level** | 11.0″ (280 mm) |
| DIELECTRIC RESERVOIR | |
| Capacity | 75 gal. (285 liters) |
| WEIGHT CAPACITY | |
| Electrode on T Slot Platen | 220 lb. (100 kg.) |
| Work Piece | 2,200 lb. (1,000 kg) |
| GENERATOR | |
| Maximum Peak Current | 100 A |
| On and Off Time | 1 to 4000 μs |
| FLOOR SPACE AND WEIGHT | |
| Width x Depth x Height | 92″ x 93″ x 94″ (234 cm x 238 cm x 240 cm) |
| Machine Tool Weight | 4,180 lb. (1,900 kg.) |
| ENVIRONMENTAL | |
| Room Temperature | 68 to 77°F (20 to 25°C) |
| Relative Humidity | 40% to 55% |
| UTILITIES | |
| Electrical | 220VAC ±10%, 60 Hz, 11 KVA |
| Air | 70 PSI@ 1 CFM (5 BAR@ 1.7 CMH) |
